wood chipper

Name: wood chipper
Brand: REAL TECH ENGINEERING
Price: 1200000.0 INR
Availability: InStock

Price 1200000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

wood chipper Specification

Power Rating
Three-phase - 15 kW/20 HP

Cooling System
Air Cooled

Frame Type
Welded Steel Frame

Frequency
50 Hz

Motor Power
15-20 kW

Model No
WC-1200

Noise Level
Below 85 dB

Lubricating System
Centralized Lubrication

Voltage
380 V

Machine Type
Wood Chipper

Drive
Belt Drive

Features
Portable frame, adjustable blades, overload protection

Operating Temperature
-10C to 50C

Production Capacity
1200 kg/h

Control System
Push Button/Panel Control

Accuracy
1 mm chip size

Product Type
Wood Chipper

Technology
Advanced Mechanical Cutting

Power Source
Electricity

Operating Type
Semi-Automatic

Power
10-50 HP (Depending on Model)

Pressure
0.8-1.2 MPa

Surface Treatment
Paint Coated

Dimension (L*W*H)
2200 x 950 x 1100 mm

Weight (kg)
650 kg

Color
Yellow And Blue

Usage & Applications
Chipping of wood, branches, logs for biomass, mulch, or composting

Recommended Log Moisture Content
Below 20%

Feeding Size
Max 150 mm diameter logs

Working Speed
1800 RPM

Safety Features
Emergency Stop Button, Safety Shields

Discharge Type
Adjustable chute

Chipping Size Range
10-40 mm

Fuel Tank Capacity (Diesel Version)
20 L

Maintenance
Low maintenance with easy-access panels

Optional Accessories
Extension conveyor, spare blades, vibration dampers

Service Support
On-site & Remote Assistance

Installation Requirement
Level foundation, 3-phase connection

Input Hopper Type
Inclined, safety-guarded

Environmental Standards
Meets ISO 14001 Guidelines

Number of Blades
4 (Reversible steel blades)

Mobility
Mounted on wheels for easy transport

Material Inlet Height
1100 mm

Blade Material
High-carbon alloy steel

wood chipper Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Week

Delivery Time
10 Days

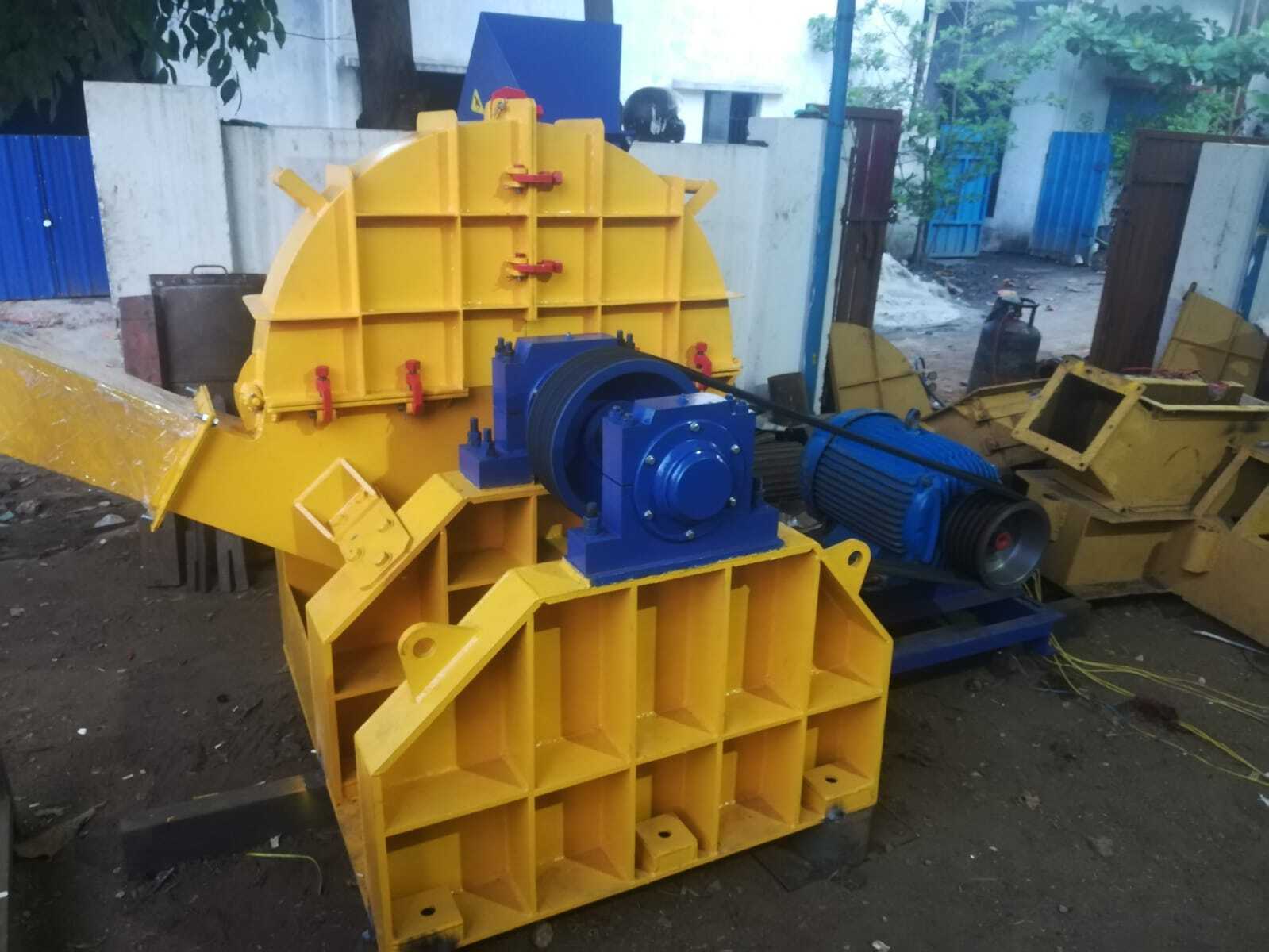

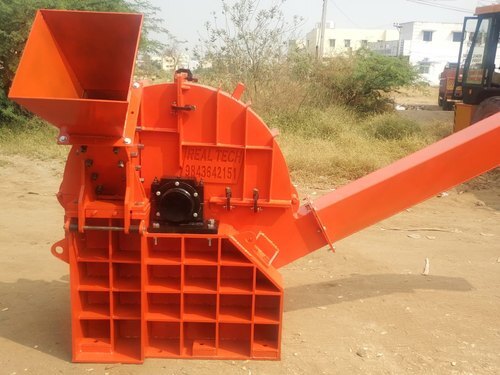

About wood chipper

A Wood Chipper is a machine used for
reducing wood (generally tree limbs or
trunks) into smaller wood chips. They are
often portable, being mounted on wheels
on frames suitable for towing behind a truck
or van. The machines are suitable to be fed
with tree trunks, tree branches, tree leaves,
bamboo, soyabeanstalks, cotton stalks,
wooden blocks, tree hides, animal feed, raw
materials for preparing biomass and other
forestry waste

Efficient Wood Processing for Diverse Applications

Designed for chipping wood, branches, and logs, the WC-1200 suits a variety of industries, including agriculture, landscaping, and biomass production. Its advanced mechanical cutting technology and accurate chipping (1 mm) produce uniform results, whether for composting or mulch production.

Superior Safety and User Convenience

Safety is paramount, with emergency stop buttons, safety shields, and an inclined, guarded input hopper. The operator benefits from easy-access maintenance panels, low-noise operation (below 85 dB), and a centralized lubrication system, ensuring efficient and comfortable usage.

Portable and Reliable Operation

Mounted on wheels and fitted with a sturdy welded steel frame, the WC-1200 is easily transportable across job sites. Air-cooled, with overload protection and an adjustable chute, it's optimized for on-field tasks and engineered for reliability under various operating conditions.

FAQ's of wood chipper:

Q: How does the WC-1200 wood chipper handle logs and branches for chipping?

A: The chipper processes wood up to 150 mm in diameter through its inclined, safety-guarded input hopper. Four reversible, high-carbon alloy steel blades cut the material at high speed (1800 RPM), producing consistent chips between 10 and 40 mm for different applications.

Q: What are the primary benefits of using this wood chipper for biomass or composting?

A: This machine delivers accurately sized chips, which improve decomposition rates for composting and provide uniformity for biomass fuel. Its high capacity (up to 1200 kg/h) maximizes productivity and suits both commercial and industrial-scale operations.

Q: Where should the wood chipper be installed for optimal performance?

A: Install the WC-1200 on a stable, level foundation with a proper three-phase electrical connection (380 V, 50 Hz). This ensures safe, consistent operation and prevents undue wear on the machine's frame or moving parts.

Q: What maintenance procedures are recommended for the WC-1200?

A: Routine maintenance includes checking blade sharpness, monitoring the centralized lubrication system, and using the easy-access panels for servicing. Maintenance is straightforward, and the low-maintenance design keeps downtime minimal.

Q: When should the blades be replaced or reversed, and what materials are they made from?

A: Blades should be reversed or replaced if chipping efficiency decreases or chip size becomes irregular. The reversible blades are made from high-carbon alloy steel, offering excellent durability and edge retention for prolonged use.

Q: How does the chipper meet environmental and operator safety standards?

A: The chipper is compliant with ISO 14001 environmental guidelines and includes safety features such as shields, an emergency stop button, safety-guarded hopper, and low-noise operation below 85 dB-all ensuring protection for operators and reduced environmental impact.

Q: What optional accessories and support services are available?

A: Optional accessories include extension conveyors, spare blades, and vibration dampers. The manufacturer provides on-site and remote assistance for installation, troubleshooting, and maintenance, supporting smooth, uninterrupted operation.
